Description

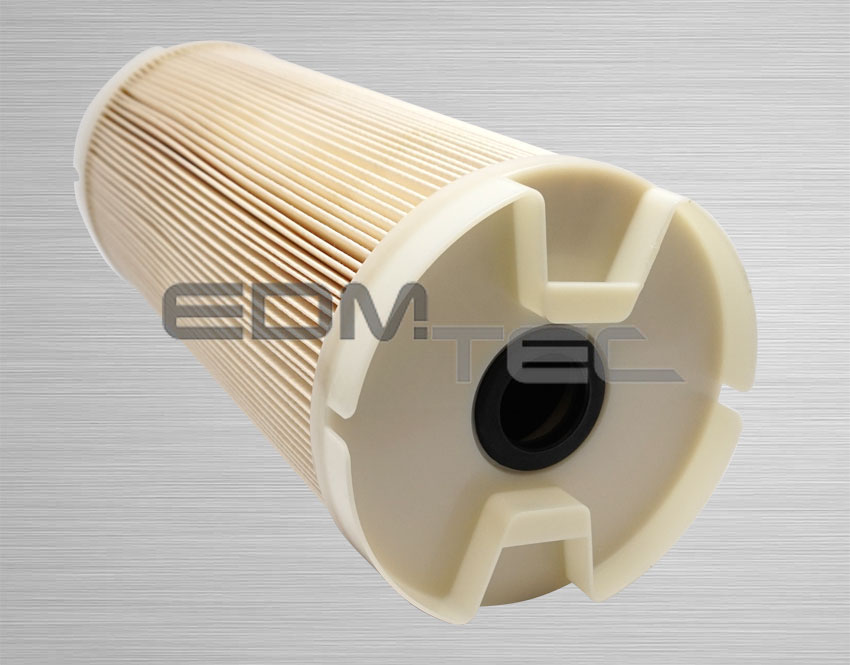

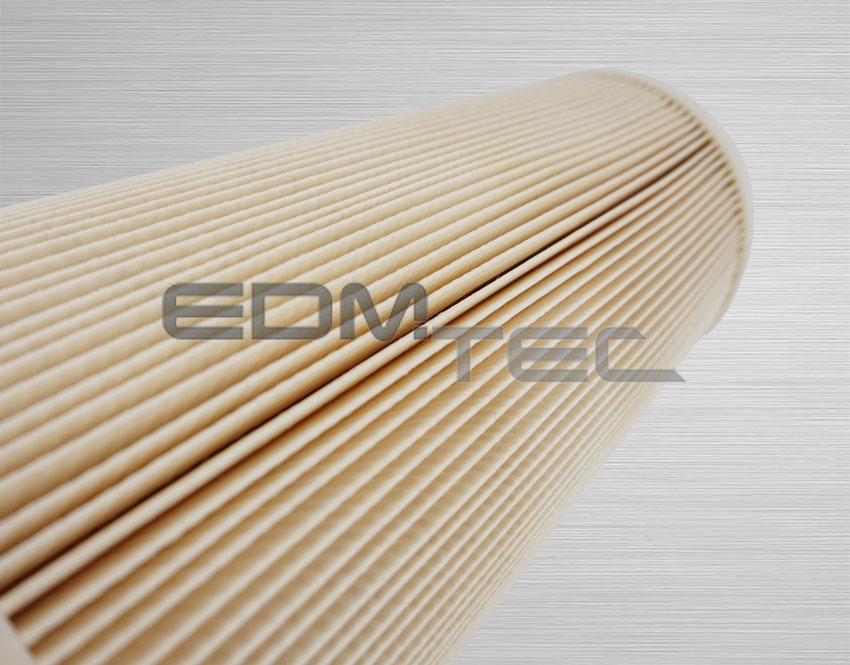

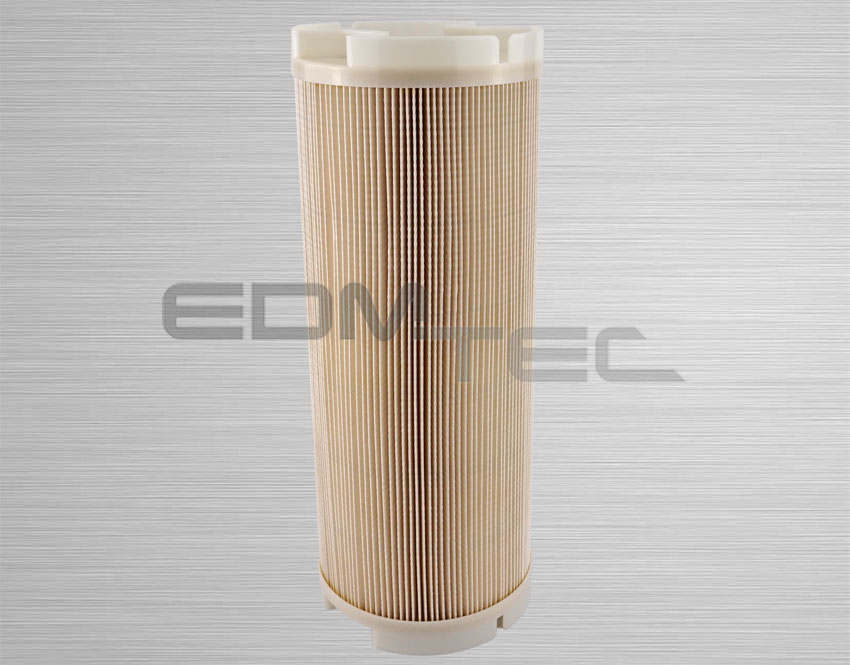

We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.

This ensures a clean dielectric in the eroding process at all times.

Use: Wire EDM, sinking EDM, starthole drilling
Paper
Packing unit: 8 Pcs.

Additional information

Weight	1 kg
Dimensions	145 × 375 mm
Filter density	5 μm
Machines	Agie, Agie AC 100, Agie AC 120, Agie AC 150, Agie AC 170, Agie AC 200, Agie AC 220, Agie AC 250, Agie AC 270, Agie AC 300, Agie AC 320, Agie AC 350, Agie AC 370, Agie Advance, Agie Agiedrill 10/20, Agie Challenge, Agie Classic, Agie Cut 1000, Agie Cut 2000, Agie Cut 2000 mS, Agie Cut 2000 Oil/Tech, Agie Cut 2000 S, Agie Cut 300 mS, Agie Cut 3000, Agie Cut 3000 S, Agie DEM, Agie Evolution, Agie Excellence, Agie Form 350 SP, Agie Form 550 SP, Agie Impact, Agie Innovation, Agie Praezidrill, Agie Progress, Agie Vertex, Aristech LSD-20, Aristech LSD-20 C, Aristech LSD-25, Aristech LSD-25 C, Aristech LSD-30 C, Aristech LSD-65, BES, BES CNC 106-3, BES CNC 1060, BES CNC 126-3, BES CNC 532-3, BES CNC 543-3, BES CNC 574-3, BES CNC 74-6, BES CNC LPR-620, BES CNC S74-3, BES CNC SL1560S, Charmilles, Charmilles HD 10, Charmilles HD 20, Charmilles HD 30, Charmilles HD 8, Charmilles Robofil 100, Charmilles Robofil 190, Charmilles Robofil 200, Charmilles Robofil 240, Charmilles Robofil 240SL, Charmilles Robofil 240SLP, Charmilles Robofil 290, Charmilles Robofil 300, Charmilles Robofil 310, Charmilles Robofil 390, Charmilles Robofil 400, Charmilles Robofil 440, Charmilles Robofil 440SL, Charmilles Robofil 440SLP, Charmilles Robofil 500, Charmilles Robofil 510, Charmilles Robofil 600, Charmilles Robofil 640, Charmilles Robofil 640 SL, Charmilles Robofil 640 SLP, Charmilles Robofil 690, Charmilles Roboform 22, Charmilles Roboform 23/53, Charmilles Roboform 35, Charmilles Roboform 35P, Charmilles Roboform 35PQCRi, Deckel, EMV-Hellmann EMV-550, Farmaxx, Farmaxx Z 25, Farmaxx Z 30, Hansen, Heun, Heun S-26, Heun S-46, Heun SP-36, Hostek, Japax, Japax LXE 50, Matra, Matra BT-2 ATC, Matra BT-3 ATC, Matra BT-E, Moldmaster, Moldmaster M35A, Moldmaster S505A, Moldmaster S602A, Nassovia, Novotec, Novotec SD-1014, Seibu Elotherm, Seibu/Walter, Top EDM, Top EDM 600 V, Top EDM TSH 3AH

Technical data

Machine type	AGIE, BES, DECKEL, CHARMILLES, HANSEN, JAPAX, NASSOVIA, SEIBU/WALTER
Use	Wire EDM, Sink EDM, Starthole drilling
Size	145 / 32 x 375mm
Filter density	5 µm
Flow	from outside
Filter Area	2,97 m²
Pressure diffenrential	max. 4,0 bar
Corresponds	EM-1204 K
Packing unit	8 Pcs.
Weight	1 Kg/Pc.
