Description
We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.
This ensures a clean dielectric in the eroding process at all times.
- Use: Wire and sink EDM
- Paper
- Packing unit: 1 Pc.

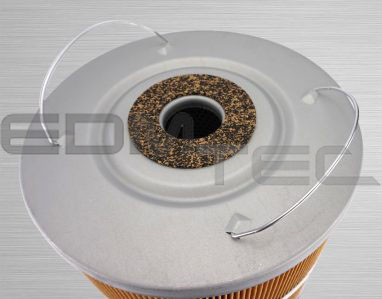

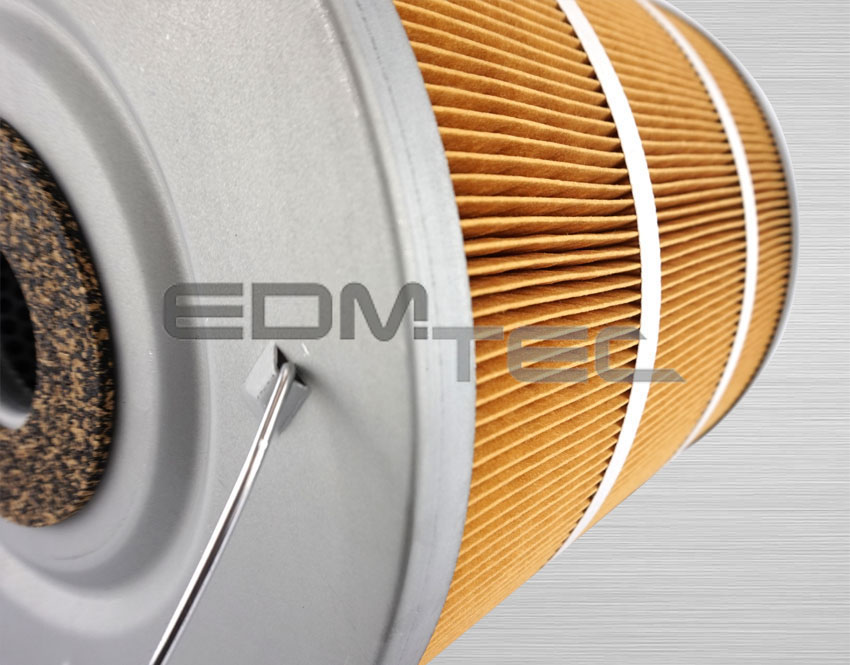

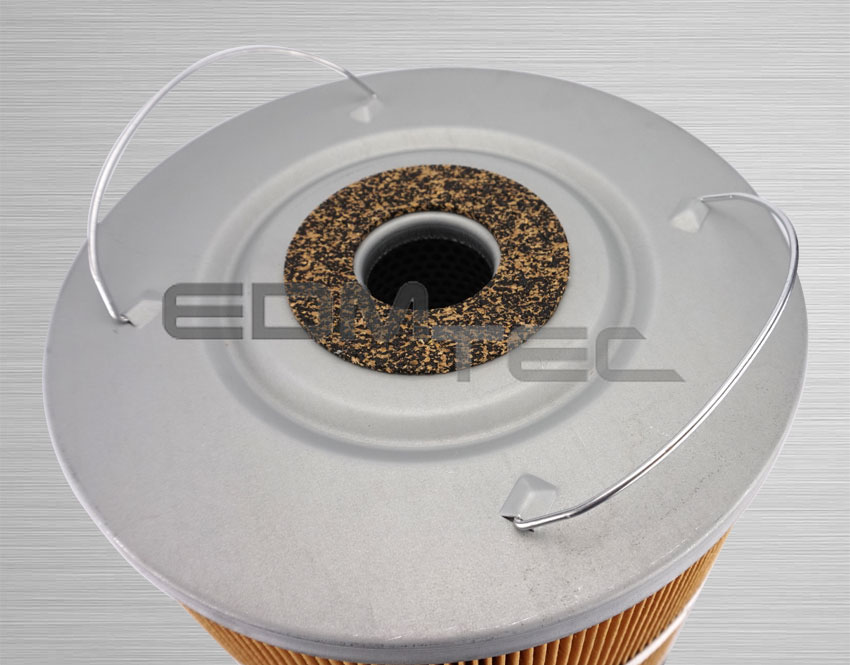

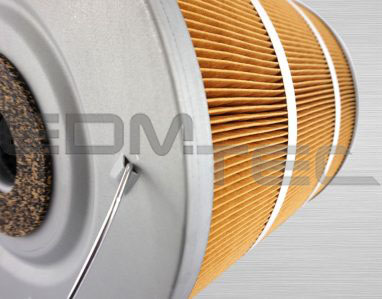

Filter/15µm 260/47 x 286 mm
On request
Corresponds: EM-125/15
Additional information
| Weight | 3,5 kg |
|---|---|
| Dimensions | 260 × 286 mm |
| Filter density | |
| Machines | Makino, Makino EC3040, Makino EC7050, Makino EDAC 1, Makino EDNC 157, Makino EDNC 30, Makino EDNC 40, Makino EDNC 43, Makino EDNC 45, Makino EDNC 65, Makino EDNC 85 |
Technical data
| Machine type |
MAKINO
|
| Use | Wire and sink EDM |
| Size | 260/47 x 286 mm |
| Filter density | 15 µm |
| Flow | from outside |
| Filter Area | 5,15 m² |
| Pressure diffenrential | max. 2,5 bar |
| Packing unit | 1 Stück |
| Gewicht | 3,5 Kg/Pc. |
