Description
We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.
This ensures a clean dielectric in the eroding process at all times.
- Use: Wire EDM
- Synthetic
- Packing unit: 1 Pc.

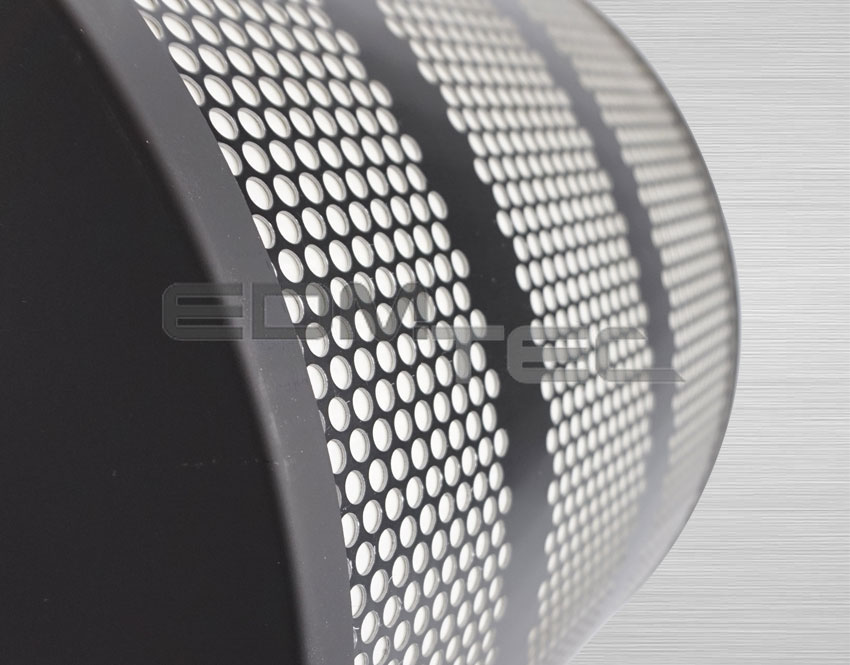

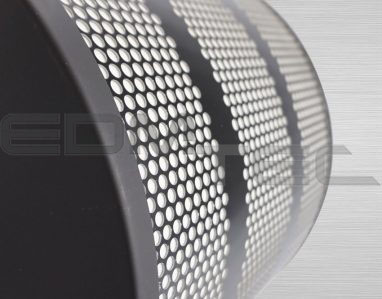

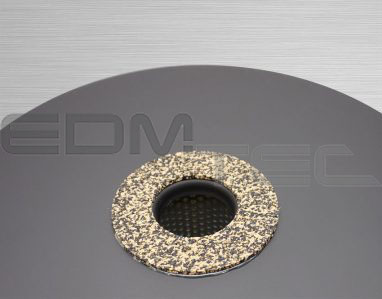

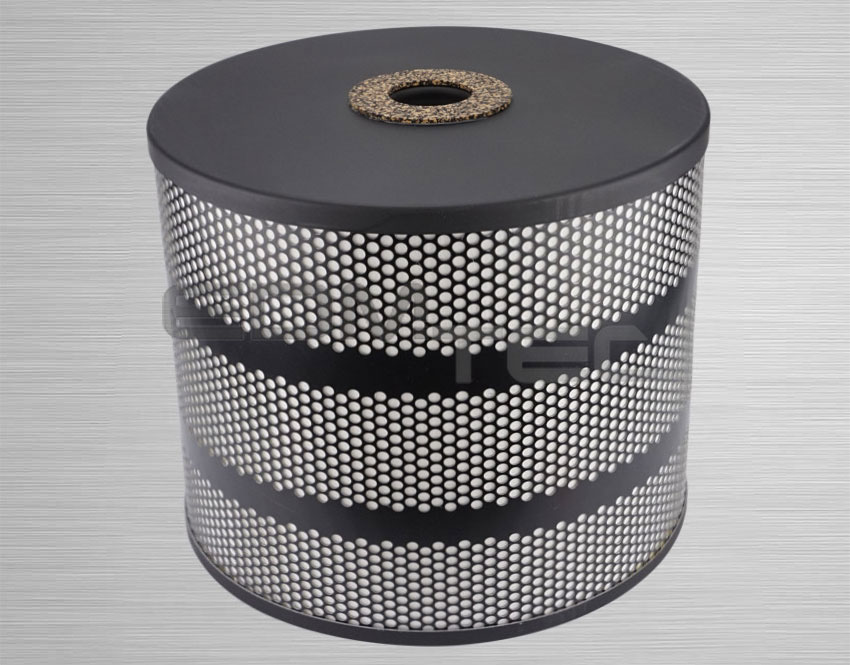

Filter/1-3µm 340/47 x 300 mm synthetic
On request
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 340 × 47 × 300 mm |
| Filter density | |
| Machines | Charmilles Robofil 510, Charmilles Robofil 640 CC, Charmilles Robofil 690, Fanuc, Sodick, Sodick A1000 W, Sodick A 750, Sodick A750 W, Sodick AG 400L, Sodick AG 411L, Sodick AG 600L, Sodick AG 611L, Sodick AG 900L, Sodick AQ-300 L, Sodick AQ-327 L, Sodick AQ-750L, Sodick AQ-900L, Sodick Mark 25, Sodick SL400Q, Sodick SL600Q, Sodick SLC-400G, Sodick SLC-600G, Sodick VZ500L |
Technical data
| Machine type |
FANUC, SODICK
|
| Use | Wire EDM |
| Size | 340/47 x 300mm |
| Filter density | 1-3 µm |
| Flow | from inside |
| Filter Area | 16,10 m² |
| Pressure diffenrential | max. 3,0 bar |
| Material | synthetic |
| Packing unit | 1 Pcs. |
| Weight | 7 Kg/Pc. |
