Description
We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.
This ensures a clean dielectric in the eroding process at all times.
- Use: Wire EDM
- Packing unit: 1 Pc.

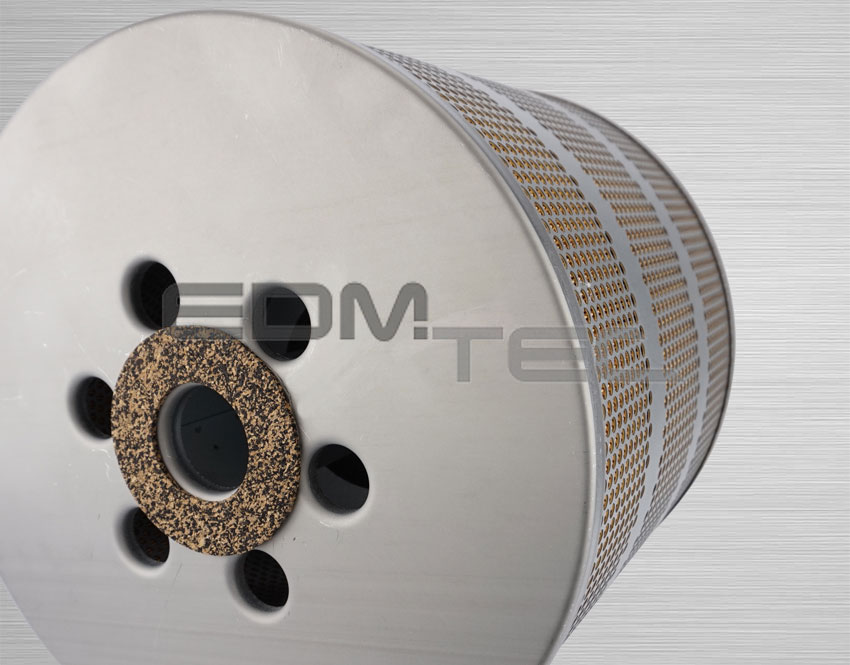

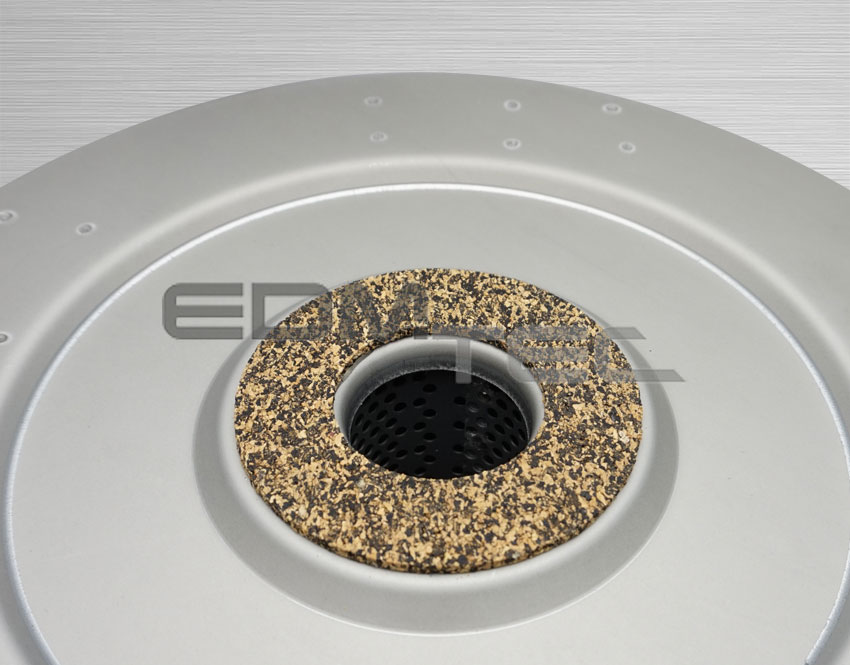

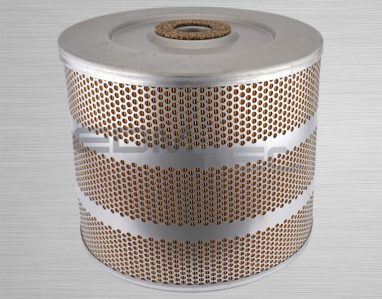

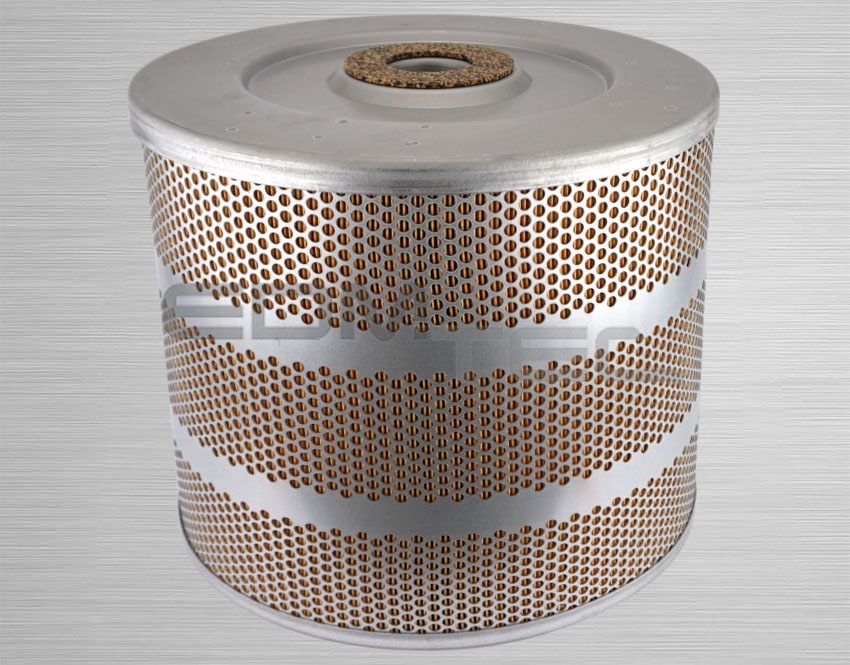

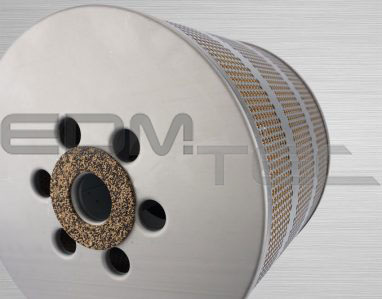

Filter/5µm 300/46 x 300 mm
On request
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 300 × 300 mm |
| Filter density | |
| Machines | Fanuc, Fanuc alpha A, Fanuc alpha B, Fanuc alpha OA, Fanuc alpha OB, Sodick, Sodick A 500, Sodick A500 P, Sodick A500 W, Sodick A500 WP, Sodick AD-35L, Sodick AP-200L, Sodick AQ-327 L, Sodick AQ 535, Sodick AQ-537 L, Sodick EXC-100 L |
Technical data
| Machine type |
FANUC, SODICK
|
| Use | Wire EDM |
| Size | 300/46 x 300mm |
| Filter density | 5 µm |
| Flow | from inside |
| Filter Area | 14,58 m² |
| Pressure diffenrential | max. 3,0 bar |
| Material | Paper |
| Packing unit | 1 Pc. |
| Weight | 10,0 Kg/Pc. |
