Description
We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.
This ensures a clean dielectric in the eroding process at all times.
- Use: Wire EDM
- Packing unit: 1 Pc.

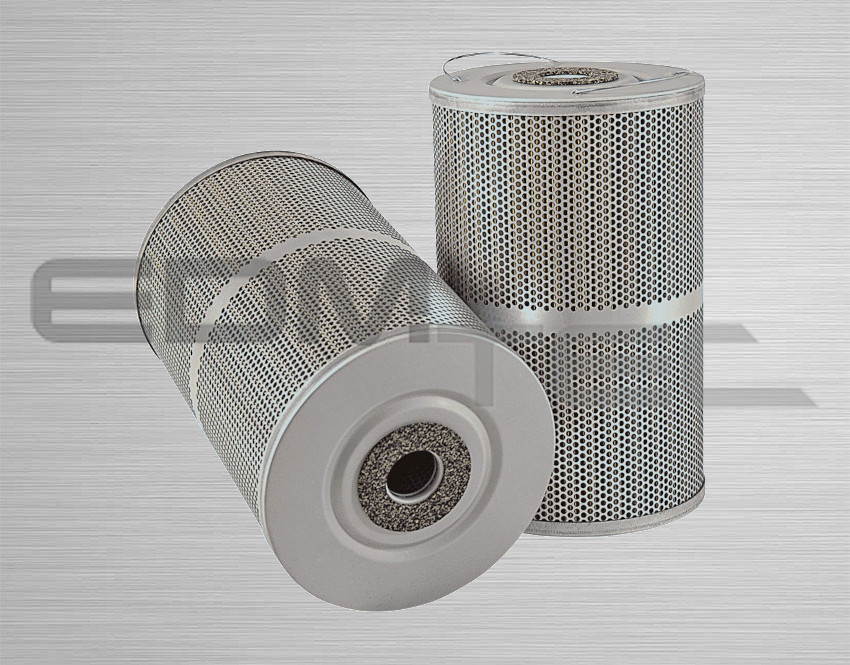

Filter/5µm 260/29 x 346mm
On request
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 260 × 346 mm |
| Filter density | |
| Machines | Fanuc, Fanuc Matra BT-1, Fanuc Matra BT-2, Fanuc Matra BT-2NC, Fanuc Matra BT-3, Fanuc Matra BT-3NC, Matra, Sodick, Sodick AG-40L, Sodick AG-60L, Sodick AG-80L, Sodick AM 3L, Sodick AQ-35L, Sodick AQ-40L, Sodick AQ-55, Sodick AQ-55L, Sodick AQ-750L |
Technical data
| Machine type |
FANUC, MATRA, SODICK
|
| Use | Wire EDM |
| Size | 260/29 x 346mm |
| Filter density | 5 µm |
| Flow | from inside |
| Filter Area | 5,17 m² |
| Pressure diffenrential | max. 3,0 bar |
| Material | Paper |
| Packing unit | 1 Pc. |
| Weight | 5,0 Kg/Pc. |
