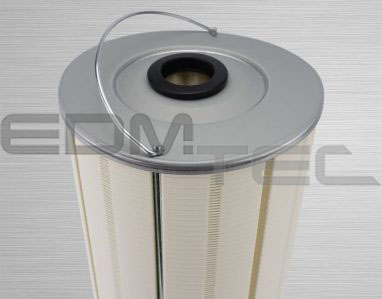

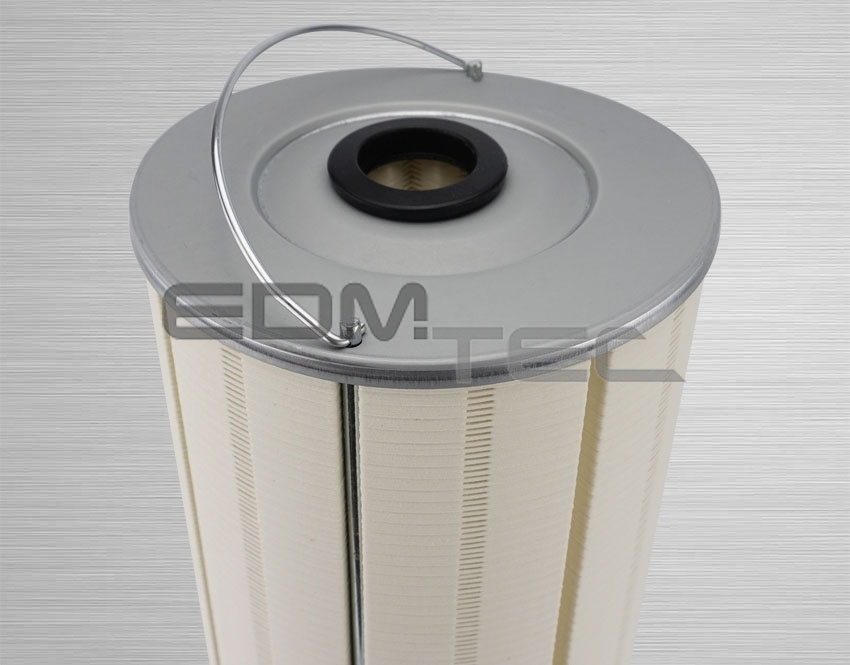

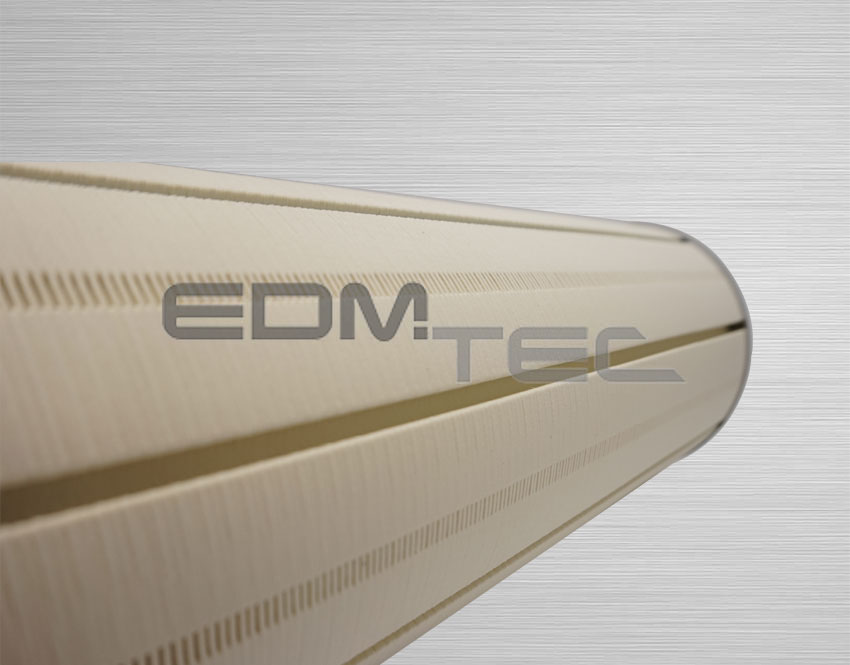

Filter/5µm 150/31,5 x 365 mm

Filter/5µm 150/31,5 x 365 mm

On request

Art.Nr.: 4011114 Category: Tags: , ,

Description

We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.

This ensures a clean dielectric in the eroding process at all times.

  • Use: Sink EDM
  • Packing unit: 6 Pcs.

Additional information

Dimensions 150 × 365 mm
Filter density

Machines

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Technical data

Machine type
AGIE, CHARMILLES, DECKEL, INGERSOLL,  HANSEN, INGERSOLL, Z+K
Use Sink EDM
Size 150/31,5 x 365mm
Filter density 5 µm
Flow from outside
Filter Area 3,8 m²
Pressure diffenrential max. 1,5 bar
Packing unit 6 Pcs.
Weight 2,3 Kg/Pc.
