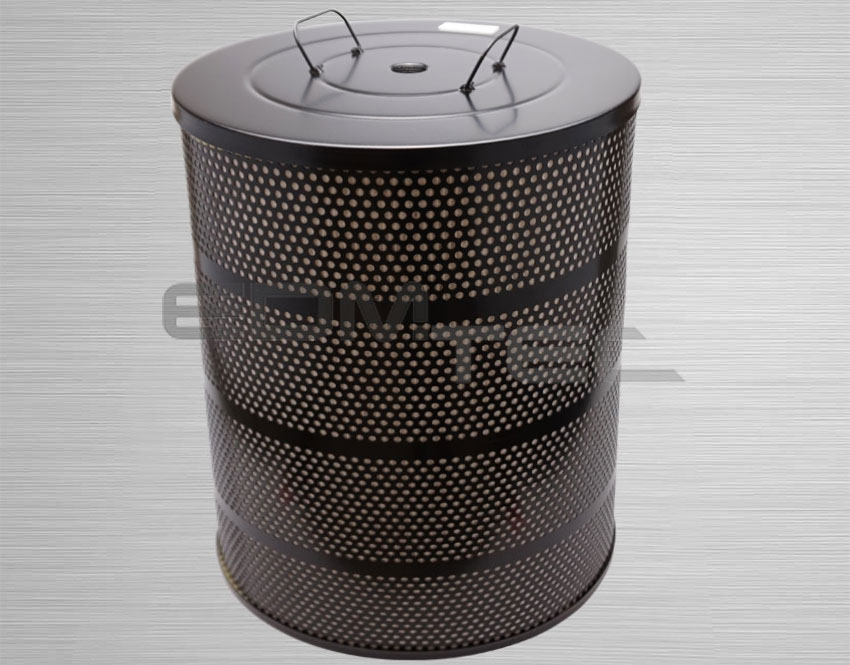

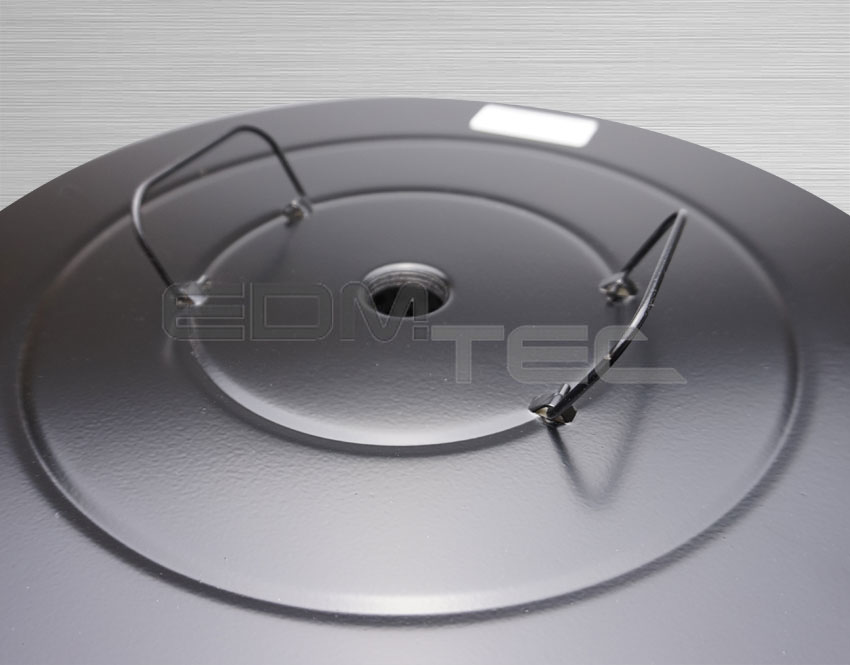

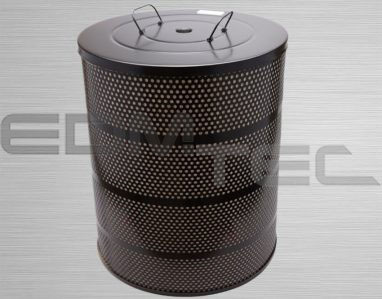

Filter/3-5µm 340 x 450 mm semi-synthetic

4001691-O-1-Filter-1
4001691-O-2-Filter

Filter/3-5µm 340 x 450 mm semi-synthetic

On request

Price inquiry/Order
Art.Nr.: 4001691-O Category: Tags: , ,

Description

We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.

This ensures a clean dielectric in the eroding process at all times.

  • Use: Wire EDM
  • For Machines:
    • CHARMILLES
    • MITSUBISHI
  • Semi-synthetic
  • Packing unit: 2 Pcs.

Additional information

Weight 8,5 kg
Dimensions 340 × 450 mm
Filter density

Machines

,

Technical data

Machine type
CHARMILLES, MITSUBISHI
Use Wire EDM
Size 340 x 450mm
Filter density 3-5 µm
Flow from inside, clutch
Filter Area 21 m²
Pressure diffenrential max. 3,0 bar
Packing unit 2 Pcs.
Weight 8,5 Kg/Pc.
