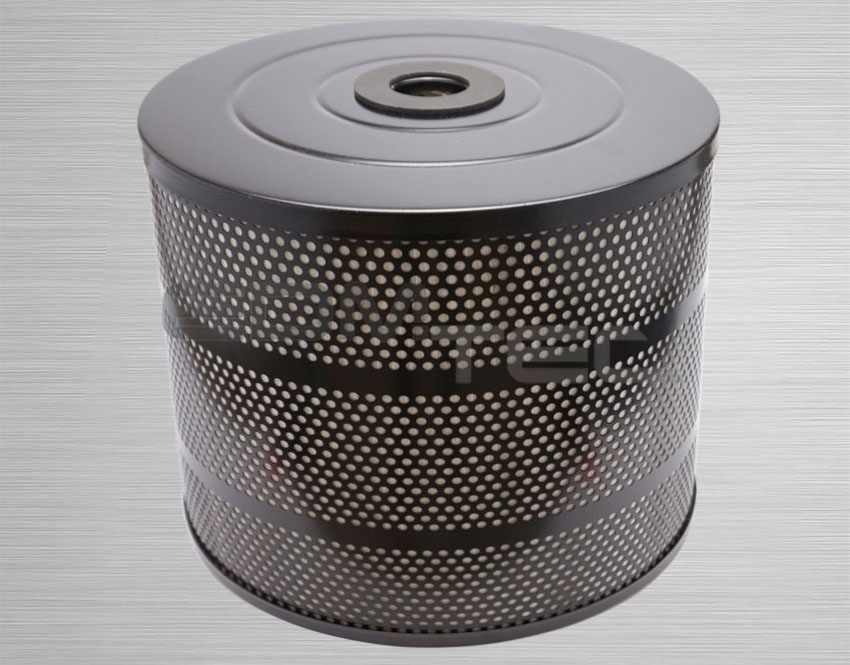

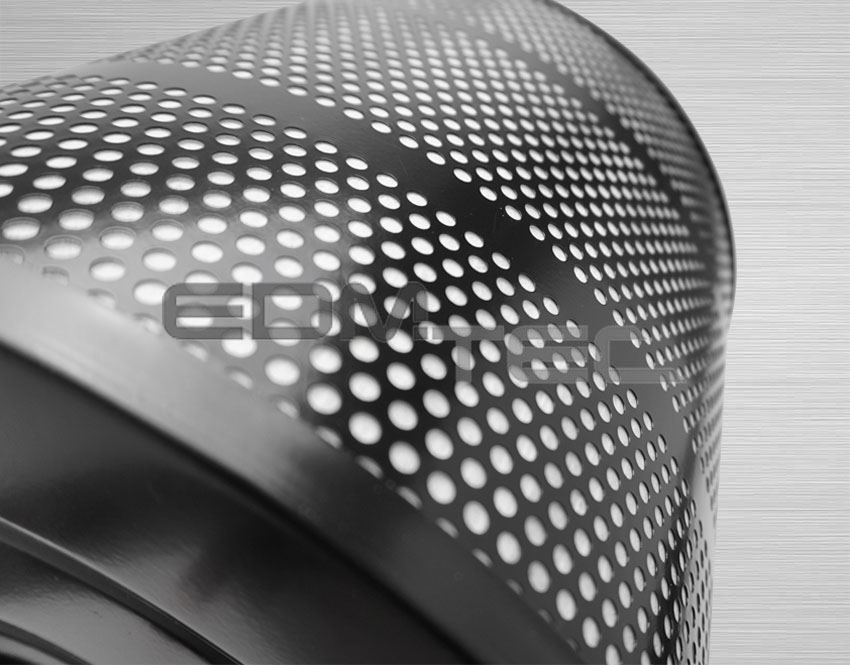

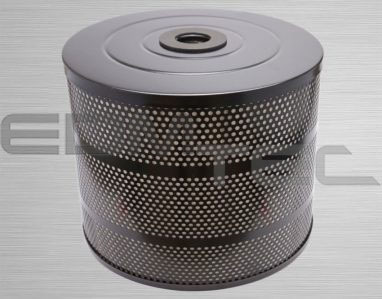

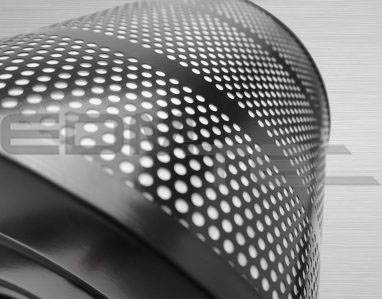

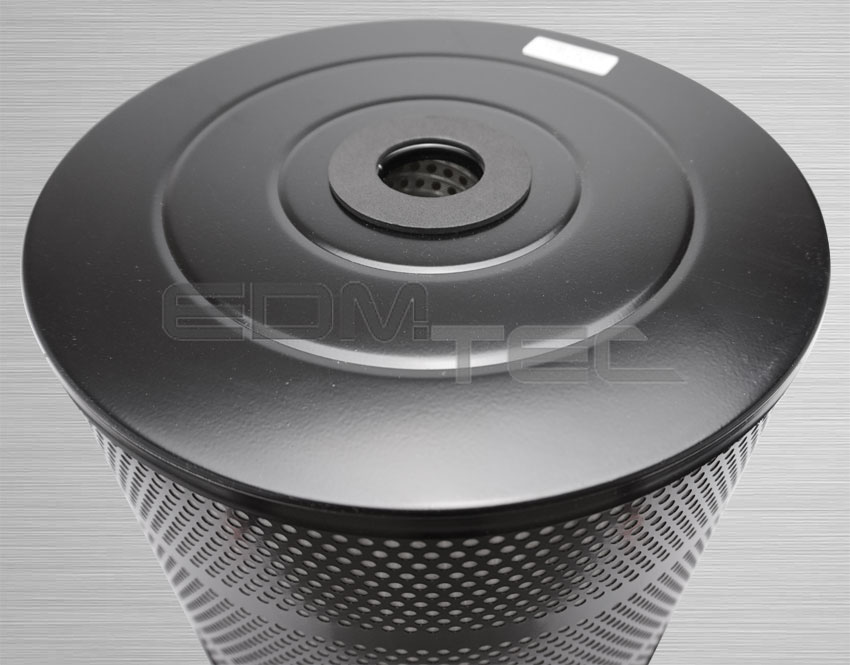

Filter/1-3µm 340/46 x 300 mm full-synthetic

4001163-SC-1-Filter-2
4001163-SC-2-Filter
4001163-SC-3-Filter

Filter/1-3µm 340/46 x 300 mm full-synthetic

On request

Price inquiry/Order
Art.Nr.: 4001163-SC Category: Tags: , ,

Description

We supply you with filters of the highest quality for wire erosion, die-sinking erosion and spark erosion drilling.

This ensures a clean dielectric in the eroding process at all times.

  • Use: Wire EDM and sinking EDM
  • Full-synthetic
  • Packing unit: 2 Pcs.

Additional information

Weight 5 kg
Dimensions 340 × 300 mm
Filter density

Machines

, , , , , , , , , , , , , , ,

Technical data

Machine type
FANUC alpha A/B/C/iA, SODICK
Use Wire EDM
Size 340 / 46 x 300mm
Filter density 1-3 µm
Flow from inside
Filter Area 14 m²
Pressure diffenrential max. 3,0 bar
Material full-synthetic
Packing unit 2 Pcs.
Weight 5 Kg/Pc.
